Synology FlashStation FS3410 Economical, high-performance data management solution for SMBs

Synology FlashStation FS3410 Economical, high-performance data management solution for SMBs

CPU:Intel Xeon D-1541 8-Core 2.1GHz (base) / 2.7 (turbo), RAM: 16 GB DDR4 ECC RDIMM (Max 128 GB), USB3.0port x2, Gigabit LAN port x4, 10Gigabit LAN port x2, PCI Gen3 x8 slots (x8 link) x2, 5Years Warranty


320,000.00 บาท (รวมภาษี)


Add to my wishlist

Rating: 4.3/10 (3 votes cast)

Synology FlashStation FS3410

Economical, high-performance data management solution for SMBs

Synology FlashStation FS3410

Harness all-flash storage to speed up business workflows

With 24 all-flash bays in a 2U rackmount enclosure, the Synology FlashStation FS3410 is the ideal solution for SMBs, enterprise offices, and data centers requiring high sustained I/O performance for applications such as video post-production, virtual machines (VMs), enterprise email servers, and online transaction processing.

Download Datasheet



Supports 24 x 2.5” SATA SSDs



Over 356,500/129,400 iSCSI 4K random read/write IOPS1



16 GB DDR4 ECC RDIMM, up to 128 GB



Optional 25/40GbE through PCIe 3.0 expansion

Powerful flash storage server

Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.

Synology FlashStation FS3410

Built for high reliability

The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.

Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

Out-of-band (OOB) management


Dual power supply

Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.

Dual power supply

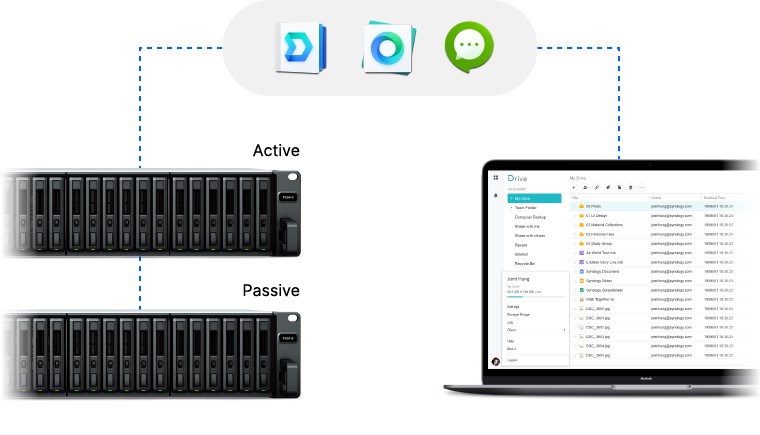

Failover cluster

Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades. Learn more

Dual power supply

Powerful networking options

The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.

Powerful networking options


Built-in fast connectivity

Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.

Support for 10/25/40GbE

Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.2

Failover and network balancing

Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.

Versatile data storage

The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.

VM storage & protection

VM storage & protection
High-performance file serving & syncing

High-performance file serving & syncing

High-performance file serving & syncing
Business application platform

Business application platform

Business application platform
VM storage & protection

VM storage & protection

Extremely fast IOPS performance combined with support for common virtualization platforms, iSCSI SAN service management, and extensive VM protection solutions make the FS3410 ideal for supporting and protecting VMs. Learn more

Complete SAN VM storage solution

Complete SAN VM storage solution


Efficient and reliable SAN VM storage

SAN management is a breeze thanks to SAN Manager, which provides LUN management, global monitoring, iSCSI configuration and disk space optimization from a single, intuitive interface.

Deploy and facilitate storage operations in various virtualization environments with full certification for VMware® vSphere™, Microsoft® Hyper-V®, Citrix® XenServer™, and a Kubernetes CSI driver for integrated volume management.

Synology High Availability provides automatic minute-level failover of stored VMs by pairing up two FS3410 units to create a high-availability cluster.

Maximize space efficiency

VM and container storage on all-flash arrays can take advantage of volume-wide data deduplication, which removes identical data to optimize storage use.3

VM backup and protection

VM backup and protection

Reliable VM backups at no extra cost

Back up unlimited VMware vSphere and Microsoft Hyper-V virtual machines from physical servers using Active Backup for Business. When unexpected interruptions occur or in upgrade testing environments quickly migrate them to Virtual Machine Manager (VMM).4

Block-level LUN snapshots and backups

Leverage Snapshot Replication for point-in-time snapshots of LUNs and shared folders with an RPO as low as 5 minutes. Replications can be managed in vCenter Site Recovery Manager and can be directly recovered via VMware vCenter Server for a simplified recovery process.

Use Hyper Backup for full data LUN and shared folder backups to a local or remote Synology system.

High-performance file serving & syncing

Leverage FS3410’s blistering speeds to provide low-latency access to massive files. Enhance the collaborative process with powerful and user friendly cross-site syncing capabilities. Learn more

Lightning-fast access to large files

Lightning-fast access to large files


Built to handle demanding workflows

Fast network capability paired with all-flash performance means that the FS3410 is capable of taking on data and network-intensive workloads with multiple users accessing large files via SMB or NFS such as video post-production, BIM, and large-scale CAD projects.

Speedy and efficient collaboration

Speedy and efficient collaboration


Secure site-to-site file and folder syncing

Make sure branches have quick access to data teams use to collaborate by syncing folders one or two way using Synology Drive ShareSync.

Efficient cross-site syncing through the cloud

Using Synology Hybrid Share, store large sets of data on the cloud and leverage the powerful bandwidth of our data centers to stream requested files to local NAS deployed at branch offices, no matter their size.5

Frequently used files are kept on the local NAS to provide access at LAN speeds, with the option to pin them manually to prevent removal from the cache.

Business application platform

Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation Manager (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.

Enabling effictive collagoration

Enabling effective collaboration


Synology Drive

Host your own private cloud on the safety of your NAS with 100% data ownership and no subscription fees. Learn more

Synology Office

Collaborate in real time on documents, spreadsheets, and slides for greater synergy and productivity. Learn more

Synology MailPlus

Set up a private and secure mail server that can be merged with existing IT infrastructure and platforms. Learn more

Containerization and virtualization-ready

Containerization and virtualization-ready



Docker on Synology DSM provides a virtualization environment that allows you to implement lightweight containers running thousands of applications. Learn more

Synology Virtual Machine Manager

Synology Virtual Machine Manager (VMM) is a hypervisor for Windows® and Linux® VMs or Virtual DSM, a virtualized version of DSM.4

Get more with DiskStation Manager

Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Data Protection

Data Protection

Keep your business safe from data loss and minimize service downtime.

Learn more

User Management

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Learn more



Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

Learn more

File Management

File Management

Manage, sync, and share files from multiple devices through a centralized platform.

Learn more

System Administration

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Learn more

Public Cloud Integration

Public Cloud Integration

Back up and synchronize data easily between public cloud accounts and your NAS.

Learn more

Synology has you covered

Synology has you covered

The FS3410 is backed by Synology's 5-year limited warranty,7 including technical support and hardware replacement services to maximize your return on investment and ensure continued high-quality performance. Learn more

Backed by Synology drives

Leverage high sustained performance and reliability with enterprise-grade drives designed specifically for Synology systems.6 Gain access to advanced features such as volume-wide data deduplication, lifetime analytics, and automatic firmware upgrades.

FlashStation FS3410

product FS3410 front view photo
product FS3410 back view photo
  • 1Power Button and Indicator
  • 2Status Indicator
  • 3Alert Indicator
  • 4Mute Button
  • 5Drive status indicator
  • 6Drive Trays
  • 7Rail Kit Release Tabs
  • 8PSU Fans
  • 9Power Ports
  • 10PSU Indicators
  • 11Console Port
  • 12PCI Express Expansion Slots
  • 131GbE RJ-45 Ports
  • 1410GbE RJ-45 Ports
  • 15USB 3.2 Gen 1 port
  • 16Management Port
  • 17Reset Button
Thumbnail 1/6 about product: FS3410Thumbnail 2/6 about product: FS3410Thumbnail 3/6 about product: FS3410Thumbnail 4/6 about product: FS3410Thumbnail 5/6 about product: FS3410Thumbnail 6/6 about product: FS3410

Hardware Spec

CPU Model Intel Xeon D-1541

CPU Quantity 1

CPU Architecture 64-bit

CPU Frequency 8-core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)
System Memory 16 GB DDR4 ECC RDIMM

Memory Module Pre-installed 16 GB (16 GB x 1)

Total Memory Slots 4

Maximum Memory Capacity 128 GB (32 GB x 4)

  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.
Drive Bays 24

Compatible Drive Type* (See all supported drives) 2.5" SATA SSD

Hot Swappable Drive

  • It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
RJ-45 1GbE LAN Port* 4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)

Management LAN Port 1

Max. number of LAN ports 15

USB 3.2 Gen 1 Port* 2

  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System
Internal Drives
  • Btrfs
  • EXT4

External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT

Notes exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center.
Form Factor (RU) 2U

Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm

Weight 15.0 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02)

Notes The rail kit is sold separately
System Fan 80 mm x 80 mm x 4 pcs

Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode

Easy Replacement System Fan

Power Recovery

Noise Level* 46.1 dB(A)

Scheduled Power On / Off

Wake on LAN / WAN

Power Supply Unit / Adapter 550 W

Redundant Power Supply

AC Input Power Voltage 100V to 240V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption* 113.84 W (Access)

British Thermal Unit 388.70 BTU/hr (Access)

  • Noise testing was conducted with the Synology system fully installed with Synology SATA SSDs and in an idle state. Two G.R.A.S. type 40AE microphones were placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
  • The power consumption of the NAS model is measured when it is fully loaded with Synology SAT5200-3840G solid-state drives.
Operating Temperature 0°C to 35°C (32°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories

Notes Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations.


  1. Model specifications are subject to change without prior notice.
  2. The figures are based on Synology internal testing. Each performance test is done individually. No other services or applications are processed at the same time.
  3. The actual performance may be lower than lab testing figure due to differences in server configuration, deployment, and the number of active operations.
  4. If usage requirements exceed the specifications above, please contact our regional partners for professional advice.
